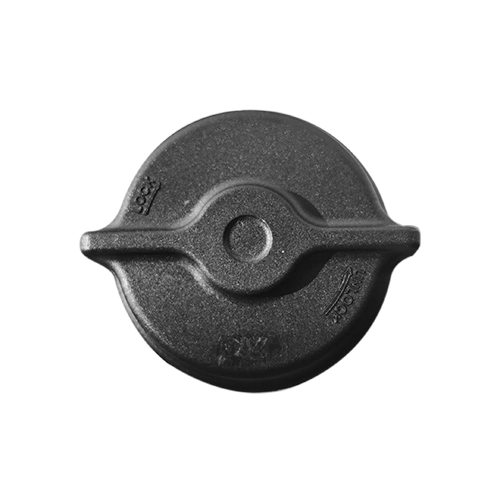

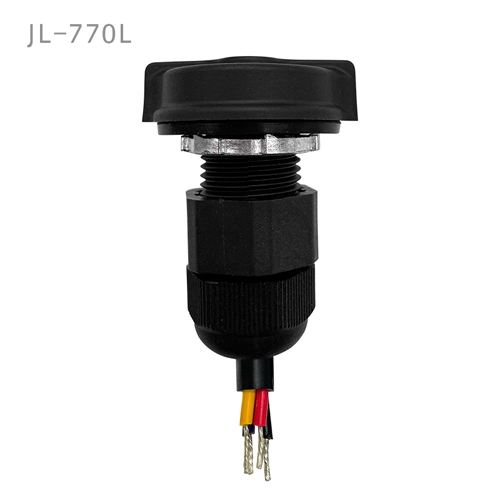

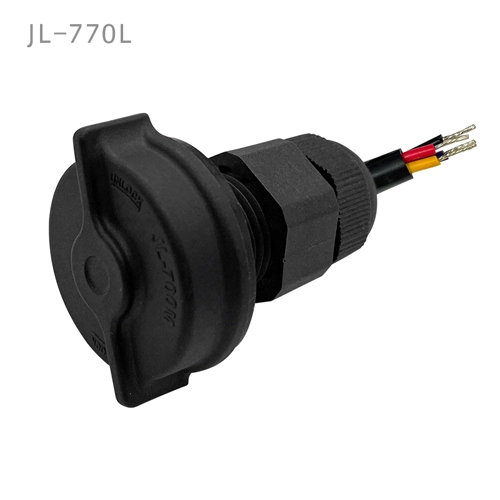

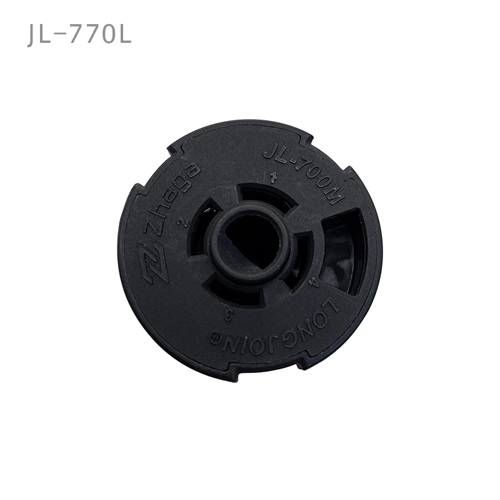

JL-770L Cables Version

0-10V Dimming, Zhaga Book-18 Receptacle, Waterproof

JL-770L Cables Version Features:

  • Cable (red, yellow, purple and black)

  • Compact size allowing greater flexibility in luminaire design

  • Advanced sealing to achieve IP66 with no mounting screws

  • Scalable solution allows use of Ø40mm photocell and Ø80mm LEX-M in a central management system with the same connection interface

  • Flexible mounting position, upwards, downwards and sideways facing

  • Integrated single gasket that seals to both luminaire and module that minimizes assembling time

JL-770L Cables Version Overview:

Similar to the Zhaga Book-18 standard, the JL-770L zhaga receptacle is designed for a 0-10V dimming scheme, making it ideal for developing standard equipment suitable for road lighting, regional lighting, or residential lighting. According to the equipment arrangement, these devices can incorporate monitoring, communication, control, and other functions based on 0-10V dimming.


JL-770L Cables Version Overview:

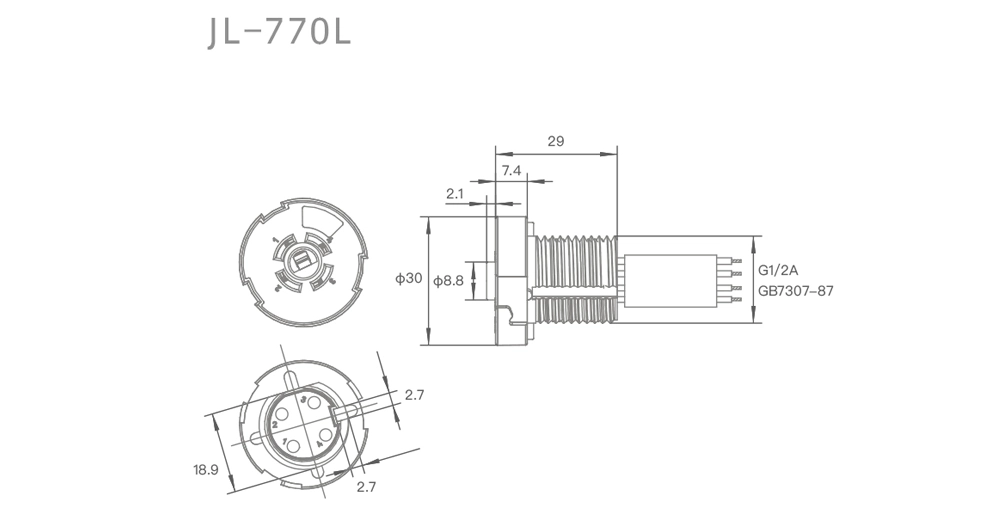

JL-770L Cables Version Specifications

Model No.

JL-770L

Rated Voltage

24VDC

Related Humidity

96%

Ambient Temperature

-40°C ~ +70 °C

*Wires

AWM 1015, 18/20/22 AWG, 105°C

AWM 1007, 18/20/22 AWG, 80°C

IP

IP66

Certifications

JL-770L Cables VersionJL-770L Cables VersionJL-770L Cables VersionJL-770L Cables VersionJL-770L Cables VersionJL-770L Cables Version

*Conductor specification: # 20 conductor has UL certification

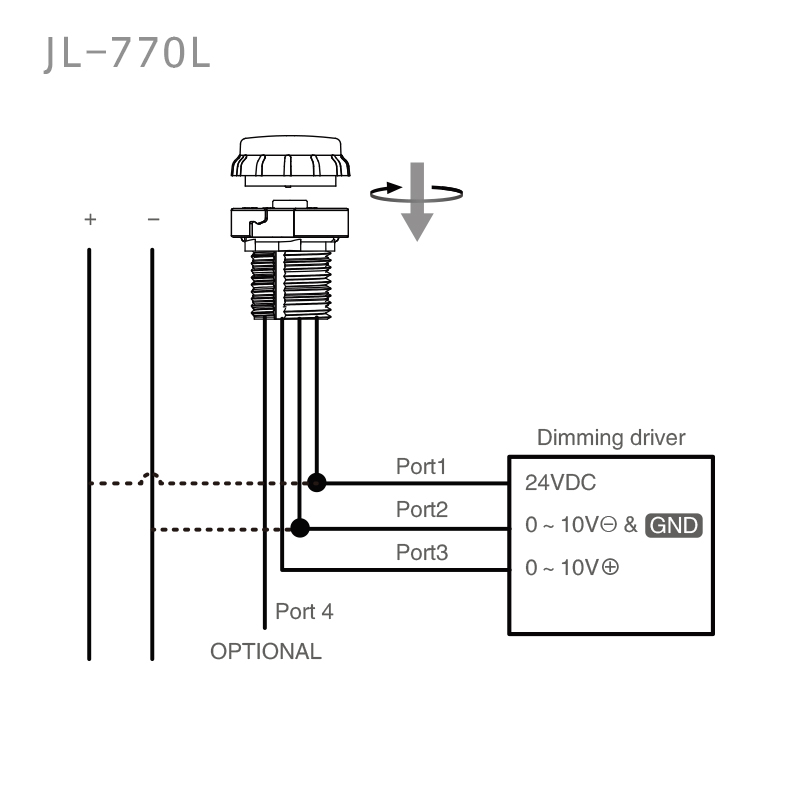

JL-770L Cables Version Installation

JL-770L Cables Version Installation

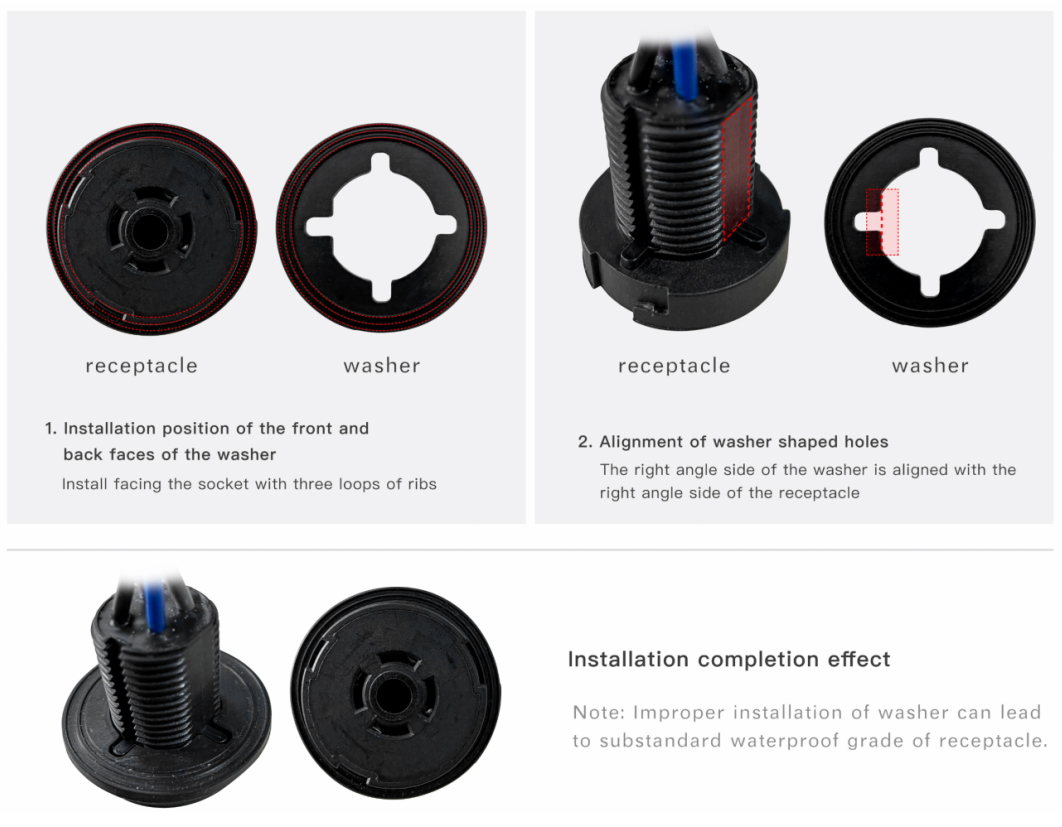

Precautions for installation of gaskets for Zhaga socket products

JL-770L Cables Version Installation
