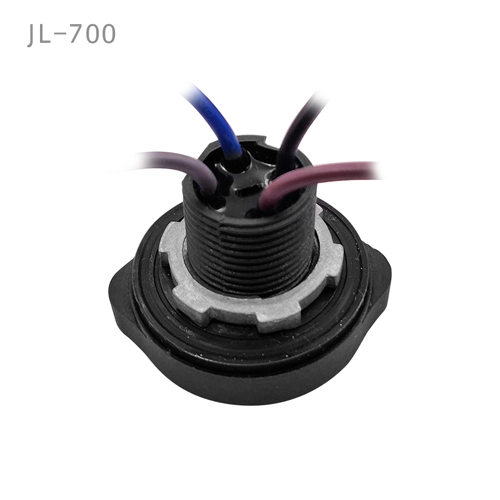

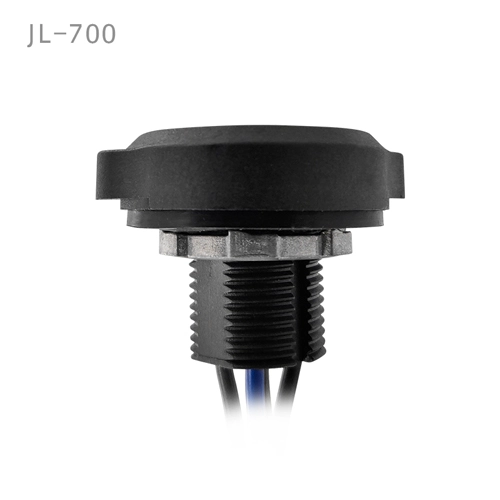

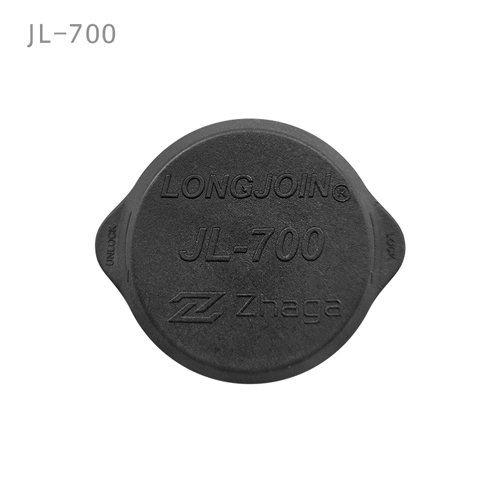

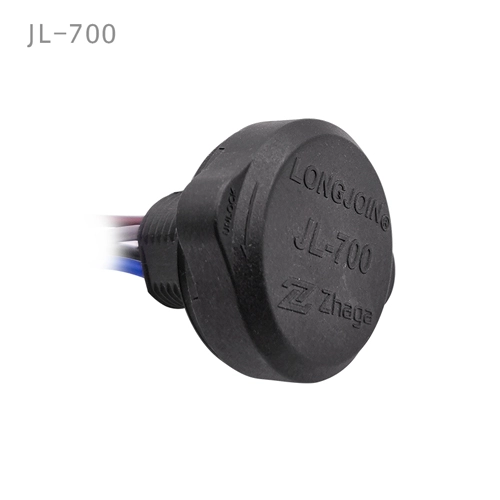

JL-700 Zhaga Book-18 Receptacle

(4P, LEX-R)

JL-700 Zhaga Book-18 Receptacle Features:

Standardized interface defined in Zhaga Book-18
Compact size allowing greater flexibility in luminaire design
Advanced sealing to achieve IP66 with no mounting screws
Scalable solution allows use of Ø40mm photocell and Ø80mm LEX-M in a central management system with the same connection interface
Flexible mounting position, upwards, downwards and sideways facing
Integrated single gasket that seals to both luminaire and module that minimizes assembling time

JL-700 Zhaga Book-18 Receptacle Overview:

JL-700 locking socket complies with the Zhaga Book-18 standard interface (Z-LEX-R, Z-LEX-C) and has obtained the necessary certifications, facilitating the development and installation of road, area, commercial, and residential lighting systems. This includes applications such as street lights, industrial and mining lights, corridor lights, and wall lights. Additionally, integrating a Zhaga receptacle with an automatic street light on off controller enables intelligent, energy-efficient lighting solutions tailored to specific environmental conditions.

JL-700 Zhaga Book-18 Receptacle Specifications

Model No.	JL-700
Related Humidity	96%
Ambient Temperature	-40°C ~ +70 °C
*Wires	AWM 1015,18/20/22 AWG,105°C AWM 1007,18/20/22 AWG,80°C 6" min
IP	IP66
Certifications
