LongJoin JL-208 NEMA Interface Twist Lock Photocell Shorting Cap

For 3P/5P/7P Twist Lock Photocell Receptacle Temporary Protection, Provide Power Connection

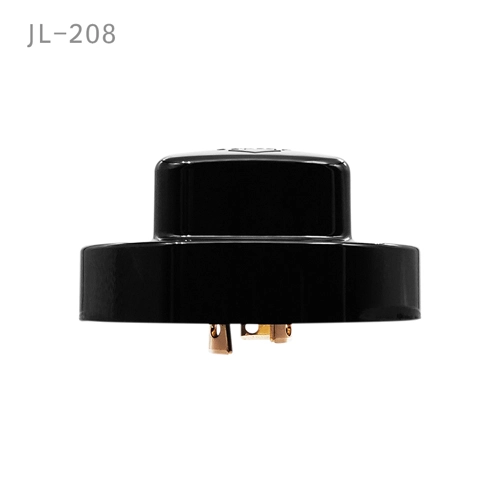

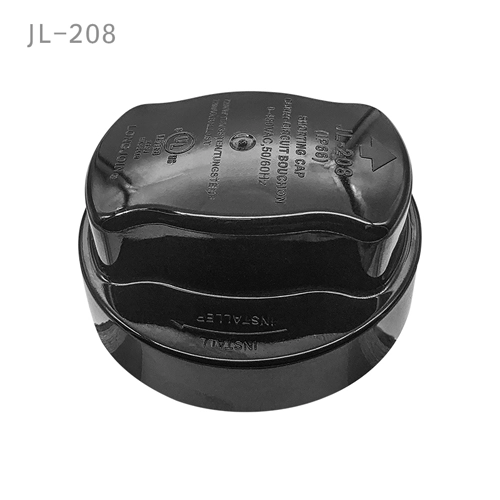

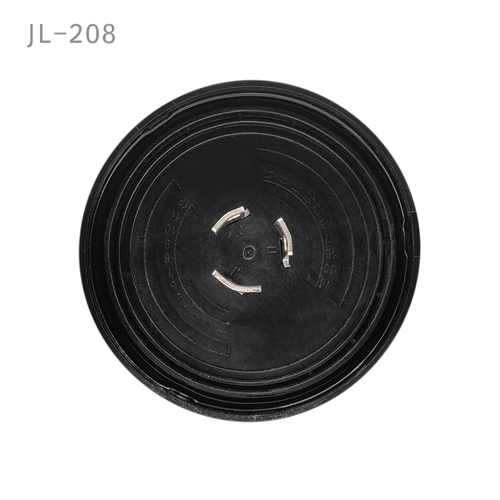

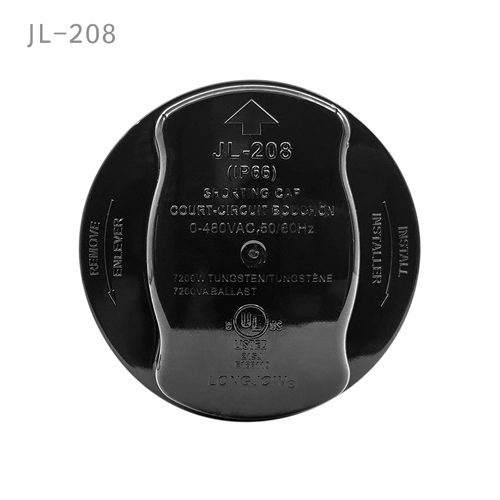

JL-208 NEMA Interface Twist Lock Photocell Shorting Cap Features:

Use a twist lock shorting cap to temporarily bypass a twist-lock photocontrol receptacle during maintenance.
Applicable with both ANSI C136.10 & C136.41
IP66 protection while installed
UV stabilized Polycarbonate enclosure
High impact Polybutylene Terephthalate base
Easy-to-handle Twist-bar Enclosure

JL-208 NEMA Interface Twist Lock Photocell Shorting Cap Overview:

Shorting caps, such as the JL-208 shorting cap, are commonly used to safeguard NEMA twist-lock sockets on outdoor lighting fixtures before the setup of independent or networked lighting controls. The NEMA shorting cap also facilitates maintenance marking and ensures continuous lighting for safety. The JL-208 shorting cap from street light controller supplier LongJoin provides a convenient and economical temporary circuit connection solution as a twist lock photocell shorting cap. It can be equipped with varistors to protect LED fixtures from transient voltage surges, functioning effectively as a photocell bypass cap to maintain power continuity. With compatibility for 3P, 5P, and 7 pin shorting cap configurations, it achieves an IP66 protection rating post-installation. The black casing improves visual differentiation from open circuit caps, aiding in quick identification.

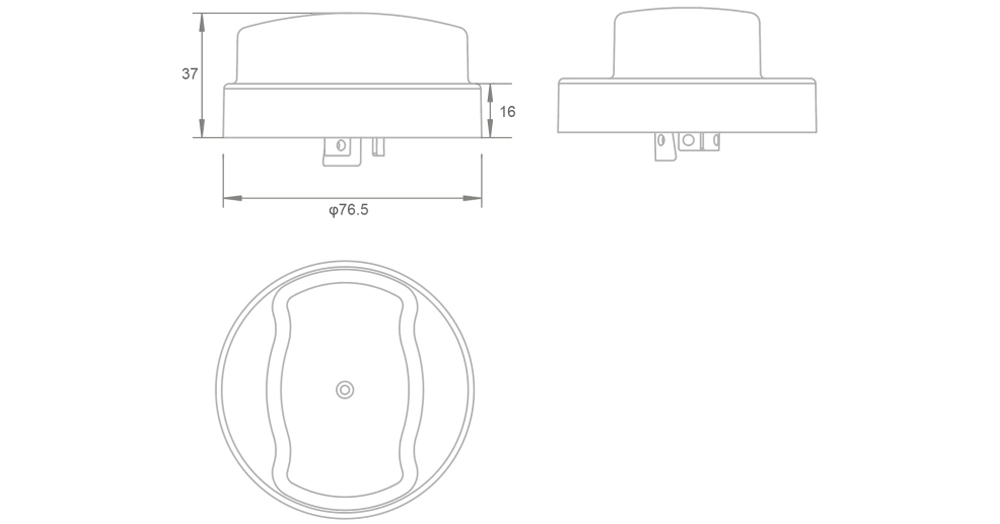

JL-208 NEMA Interface Shorting Cap For 3P/5P/7P Specifications

Model No.	JL-208-IP66
Rated Loading	7200W Tungsten, 7200VA Ballast
Maximum Voltage	0~480VAC
Rated Frequency	50/60Hz
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Shell material	PC
IP level	IP66
Certifications

JL-208 NEMA Interface Twist Lock Photocell Shorting Cap Installation

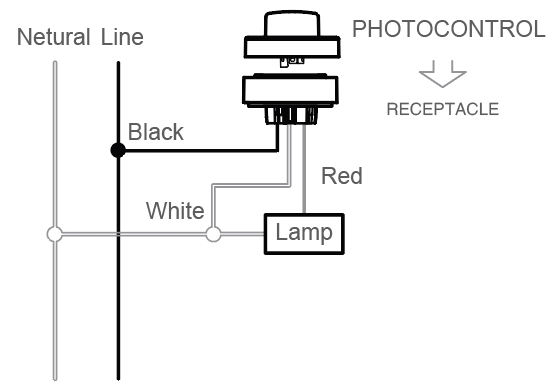

Disconnect power; wire the receptacle according to the diagram below. Push the street light shorting cap on and twist it clockwise to lock it into the receptacle.

JL-208 NEMA Interface Shorting Cap Installation
