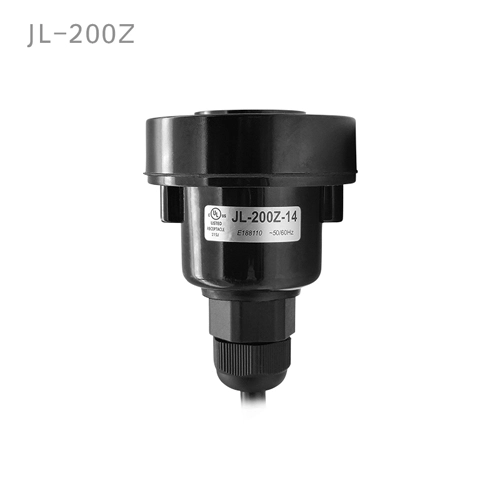

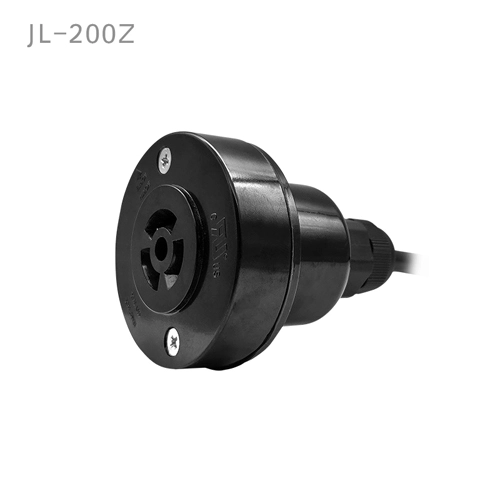

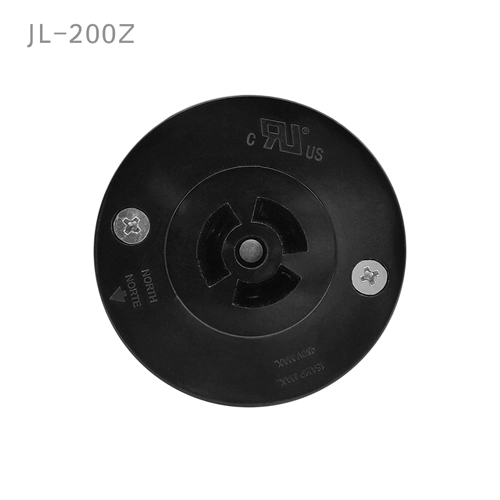

Name: JL-200Z External Mounting 3-PIN
Brand: Shanghai Long-Join Intelligent Technology Inc.
Availability: InStock

JL-200Z External Mounting 3-PIN Overview:

The JL-200 series of twist-lock photocell-controlled switch outlets are crafted for outdoor lighting applications, purposed to govern the electrical supply of lighting fixtures through the integration of twist-lock photocell controllers/switches. Equipped with three locking terminal connectors, these products adhere to the insert and twist-lock photocell standards set forth by ANSI C136.10 and ANSI/UL773 for lighting in public spaces. The *Z model is distinguished by its inclusion of a supplementary back cover and is designed for outdoor cable connectivity.

JL-200Z External Mounting 3-PIN Specifications

Model No.		JL-200X	JL-200Z
Power Volt Range		0~480VAC
Rated Frequency		50/60Hz
Load Rating		15 A
Ambient Temperature		-40°C ~ +70°C
Related Humidity		96%
Accessory	Rear holder	—	●
	Zinc Alloy Lock Nut	—	●
	Mounting Bracket	—	●
Lead Length		6" min
Lead		AWG#12/14/16 AWG#18(non-UL)	AWG#12/14 AWG#16/18(non-UL)
Cable Line (IP65)		-	Optional
Certifications		ANSI C136.10-2010（RS type only）
