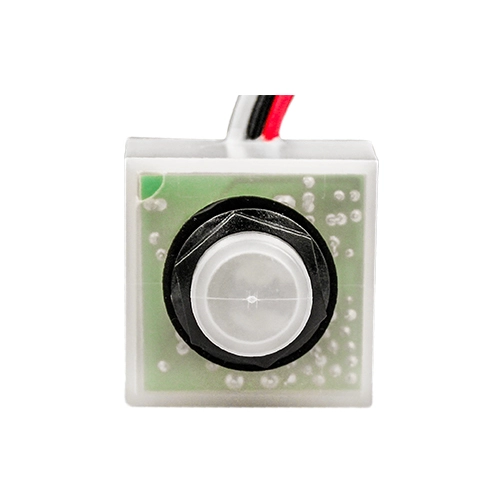

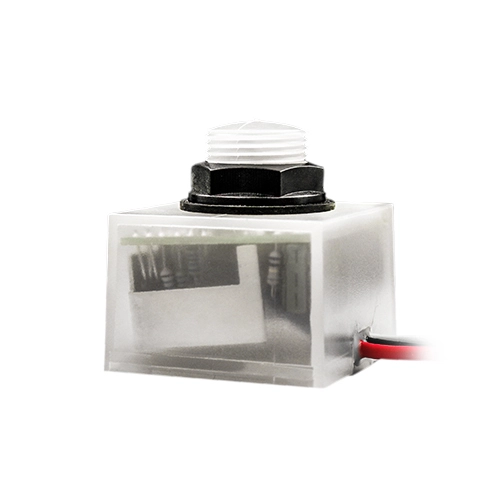

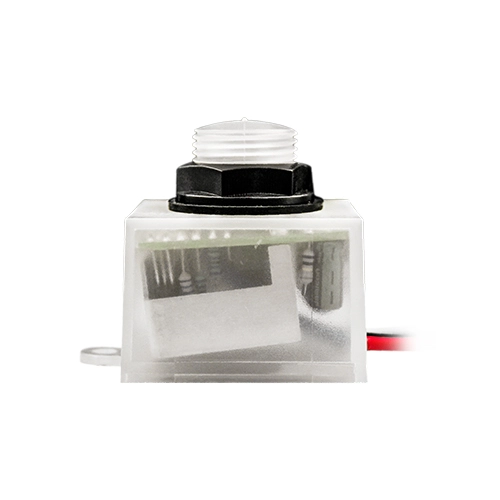

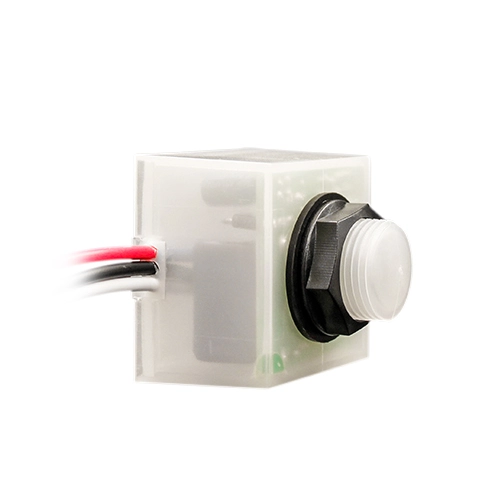

Name: JL-401C Integrated Sensor
Brand: Shanghai Long-Join Intelligent Technology Inc.
Availability: InStock

JL-401C Integrated Sensor Overview:

The JL-401C photocontrol is equipped to automatically govern the lighting in gardens, passageways, and doorways, aligning with the surrounding natural light levels as a street light photocell. Additionally, it features an integrated time delay of 10 to 30 seconds to prevent excessive triggering by vehicle headlights or nighttime lightning with photocell connection with light from trusted street light controller manufacturers.

JL-401C Integrated Sensor Specifications

Model No.	JL-401C	JL-401CR
Rated Voltage	120~277VAC
Available Voltage Range	105~305VAC
Rated Frequency	50/60Hz
Sensor Type	CdS photocell
Rated Loading	6A TUNGSTEN、6A Ballast
Power Consumption	5W Max.
Operate Levels	10~20Lx Turn-On / 25~35Lx Turn-Off
Fail Mode	Fail-Off
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Leads Length	AWG#18, AWM1015
Wire Color Coding	US
Surge Protection	40J/1750A (MOV)
Certifications

JL-401C Integrated Sensor Installation

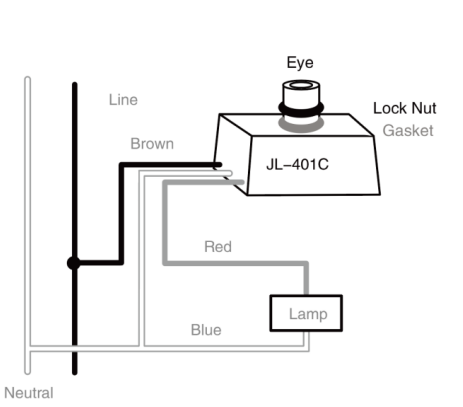

Disconnect power, place screw thread of the photocontrol in knockout hole and fasten with rubber gasket and lock-nut. Wire according to the diagram in below. Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night.

JL-401C Integrated Sensor Installation
