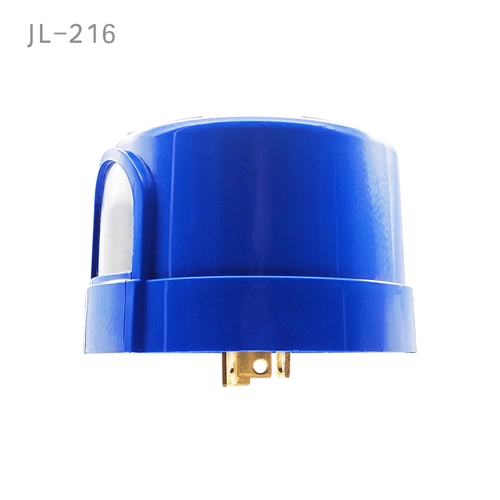

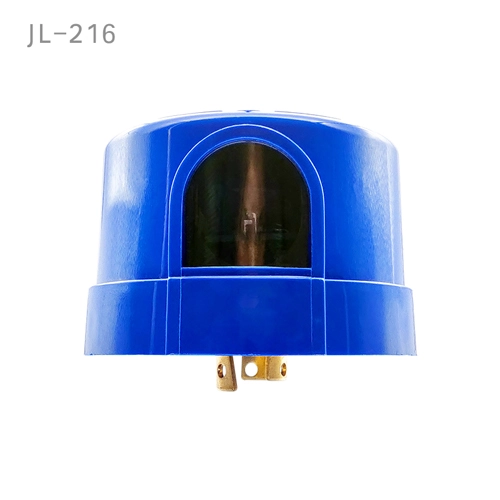

JL-216 NEMA Interface Overview:

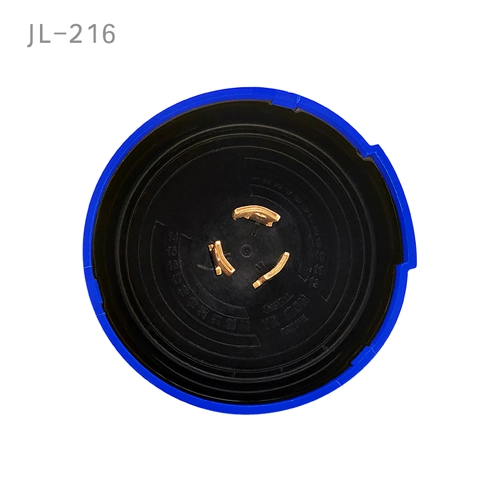

The JL-216 series of photocontrols is suited for the automatic regulation of street, garden, corridor, and entrance lighting, aligning with the outdoor light levels and featuring an energy-saving function at daybreak. These devices incorporate microprocessor-based circuits with an IR-filtered phototransistor and are equipped with a surge arrester (MOV) for protection. They also include a pre-set time delay of 5-20 seconds to prevent unnecessary activation from headlights or nighttime lightning. The long-life version ensures stable and dependable performance, with the relay capable of over 10,000 operating cycles. Additionally, the installation of a double-layer protective shell can extend the operational life of the JL-216. The product is fitted with twist-lock terminals that adhere to ANSI C136.10 standards and the ANSI/UL773 specification for plug-in, locking type photocontrols used in area lighting.

JL-216 NEMA Interface Specifications

Model No.	JL-216C	JL-216E	JL-206F
Rate Voltage	120~277VAC	347VAC	480VAC
Applicable Voltage Range	105~305VAC	105~382VAC	105~528VAC
Rated Frequency	50/60Hz
Rated Loading	1000W Tungsten, 1800VA Ballast, 8A@120VAC/ 5A@208-277VAC e-Ballast	1800W Tungsten, 1800VA Ballast, 5A e-Ballast	1800W Tungsten, 1800VA Ballast
Power consumption	0.5W Max.
Surge Immunity	4kV/6kV/20kV	N/A
Operate Levels	24Lx On / 16Lx Off / per client request
Ambient Temperature	-40℃ ~ +70℃
Fail Mode	C5：Fail-On C4：Fail-Off	E5：Fail-On E4：Fail-Off		F5：Fail-On F4：Fail-Off
Shell material	optional
High protection	Sandwich cover
Zero crossing control	●	N/A
FCC	●	N/A
IP level	IP54 / IP65 / IP67
Factory settings	Illuminance/Delayed Customizable
