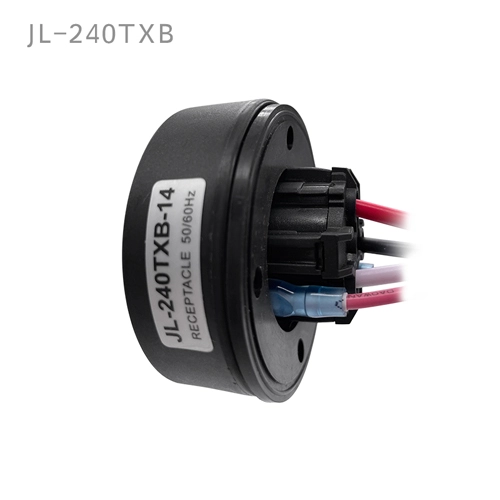

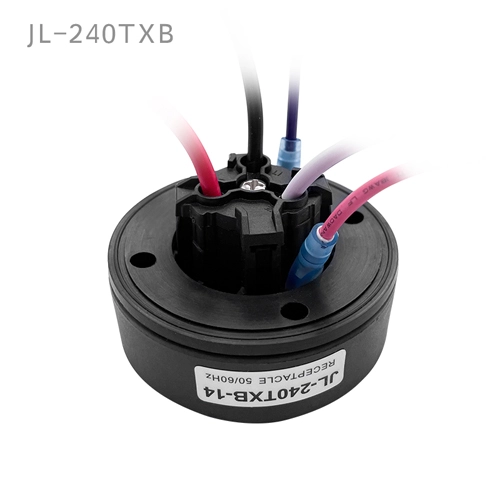

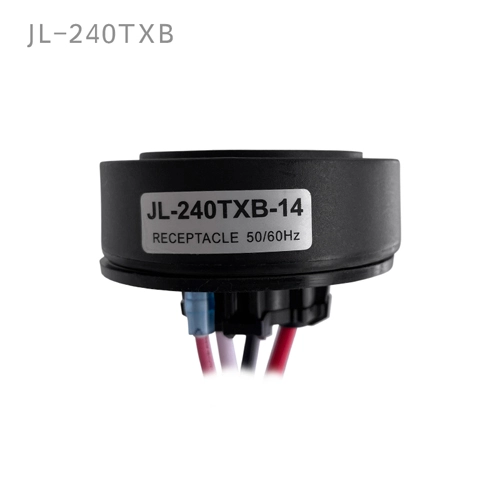

Name: JL-240TXB Built-In 5-Pin NEMA Socket
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-240TXB Built-In 5-Pin NEMA Socket Overview:

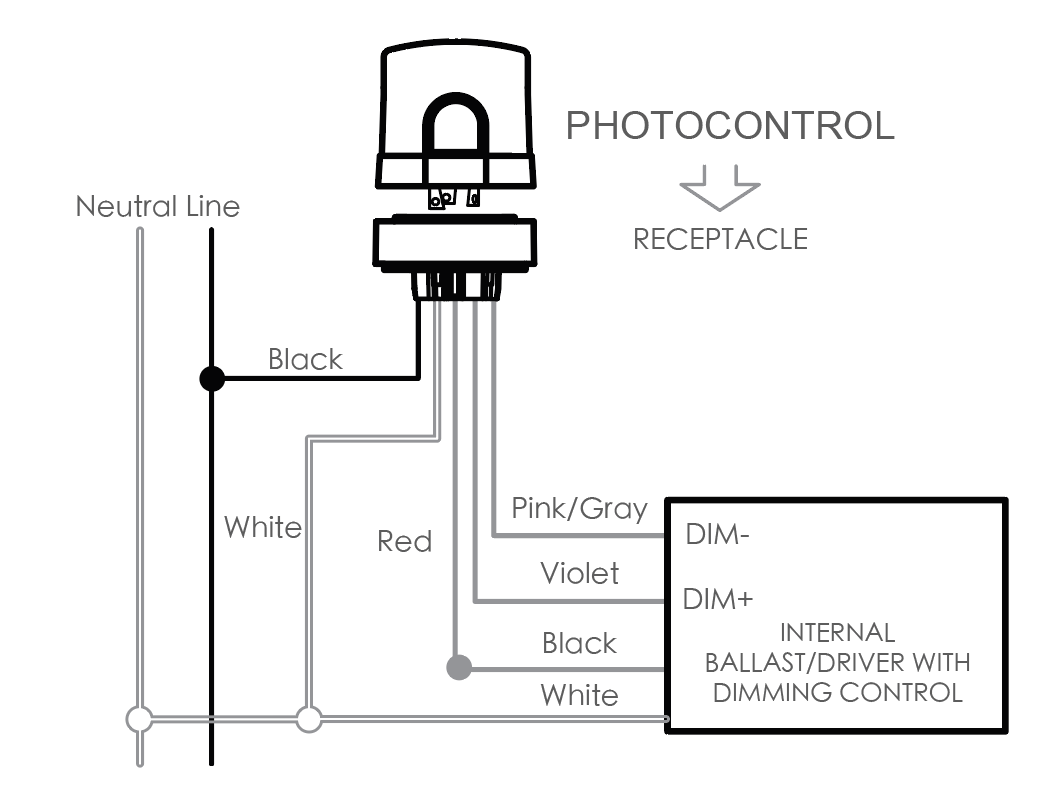

The JL-240TXB twist-lock photocell socket, featuring an integrated gasket design, is tailored for outdoor lighting fixtures to enable control of LED lighting via twist-lock photocells. This product offers two gold-plated contact tabs on its top surface, which are compatible with the spring contacts of twist-lock photocells according to ANSI C136.41 standards, and it includes two signal wires at the back. The JL-240TXB adheres to the insert and twist-lock photocell standards as set by ANSI C136.10, ANSI C136.41, and ANSI/UL773 for area lighting use.

JL-240TXB Built-In 5-Pin NEMA Socket Specifications

Model No.	JL-240X/TX
Applicable Volt Range	0~480VAC
Rated Frequency	50/60Hz
Load Rating	15A
Signal Control	0-30 VDC, 250 mA Max
Lead	16AWG, 14AWG 6" min
Ambient Temperature	-40°C ~ +70°C
Related Humidity	96%
Outdoor Wiring Cable	●
Certifications	ANSI C136.41-2013
