Name: JL-401CR Separated Sensor
Brand: Shanghai Long-Join Intelligent Technology Inc.
Availability: InStock

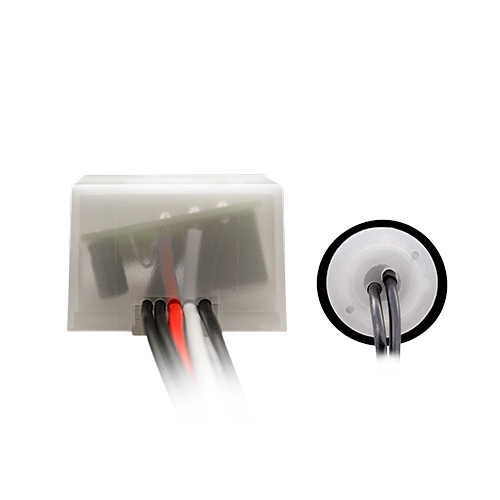

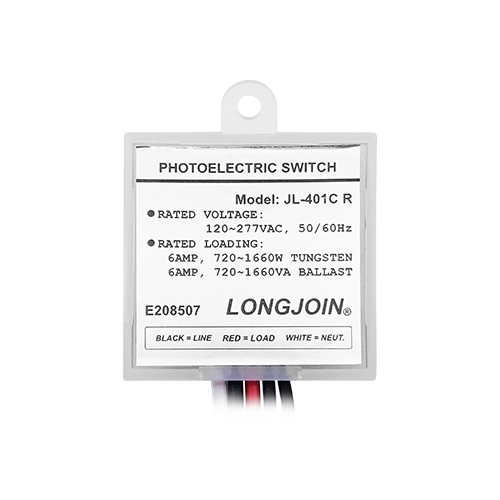

JL-401CR Separated Sensor Overview:

The JL-401C photocontrol unit is suited for the automatic regulation of lighting in gardens, walkways, and entryways, based on the outdoor light conditions. Moreover, it includes a fixed time delay of 10 to 30 seconds to reduce the likelihood of unnecessary activation from artificial spotlights or nighttime lightning flashes.

JL-401CR Separated Sensor Specifications

Model No.	JL-401C	JL-401CR
Rated Voltage	120~277VAC
Available Voltage Range	105~305VAC
Rated Frequency	50/60Hz
Sensor Type	CdS photocell
Rated Loading	6A TUNGSTEN、6A Ballast
Power Consumption	5W Max.
Operate Levels	10~20Lx Turn-On / 25~35Lx Turn-Off
Fail Mode	Fail-Off
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Leads Length	AWG#18, AWM1015
Wire Color Coding	US
Surge Protection	40J/1750A (MOV)
Certifications

JL-401CR Separated Sensor Installation

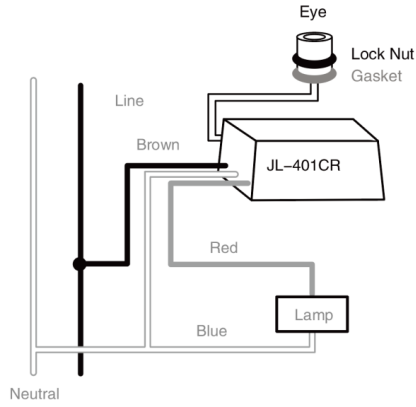

Disconnect power, place screw thread of the photocontrol in knockout hole and fasten with rubber gasket and lock-nut. Wire according to the diagram in below. Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night.

JL-401CR Separated Sensor Installation
