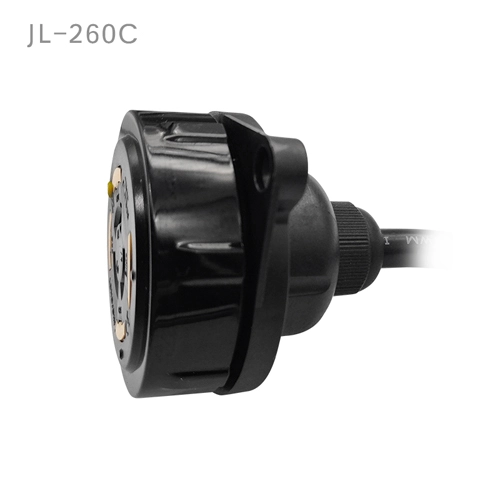

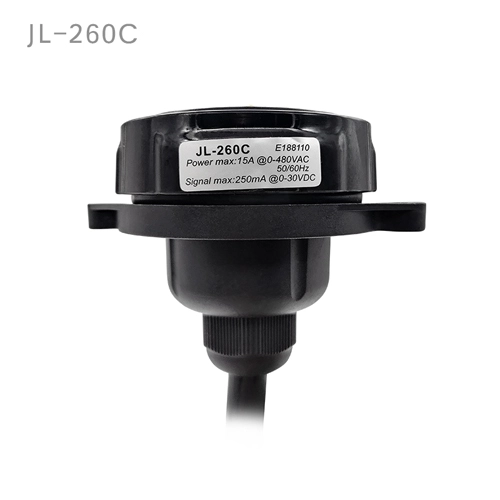

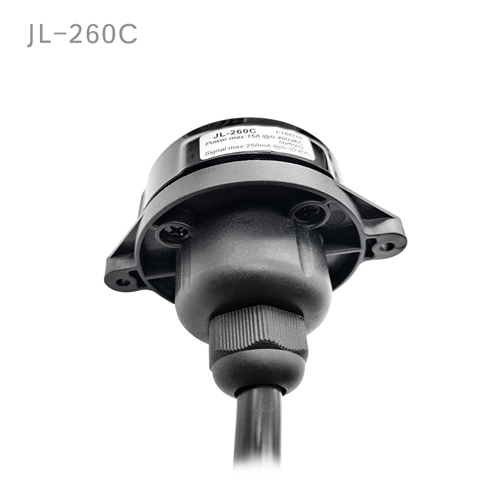

Name: JL-260C External Mounting 7-Pin NEMA Socket
Brand: Shanghai Long-Join Intelligent Technology Inc.
Availability: InStock

JL-260C External Mounting 7-Pin NEMA Socket Overview:

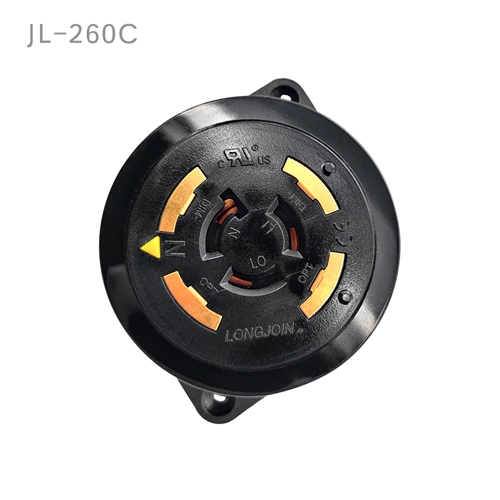

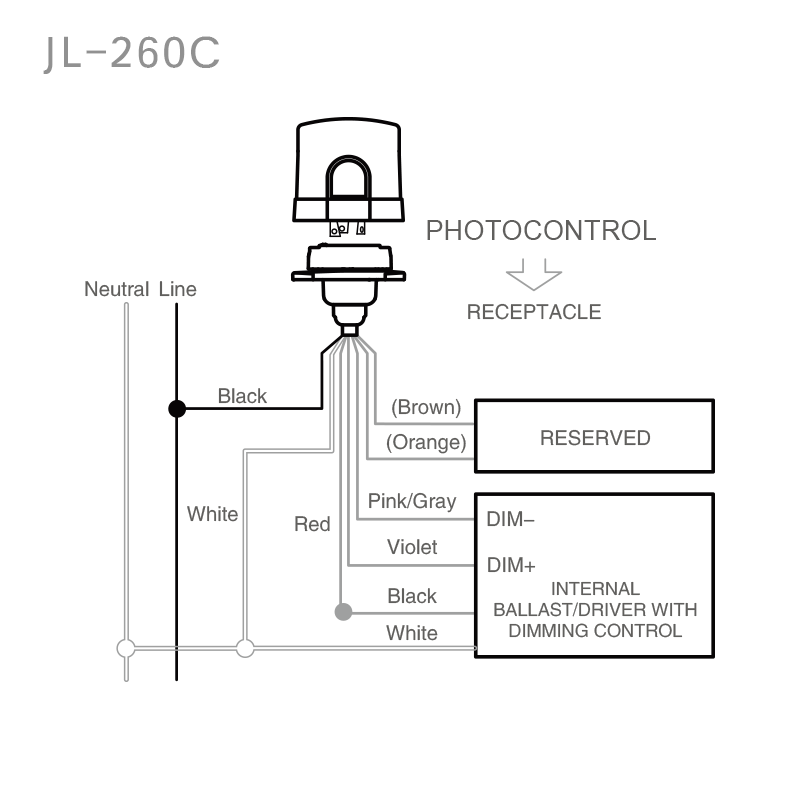

The JL-260C twist-lock photocell socket is designed for outdoor lighting fixtures to enable control of LED luminaires with twist-lock photocells. This product features four gold-plated, arc-shaped contact tabs on its top surface, which are compatible with the spring contacts of twist-lock photocells (ANSI C136.41), and comes with four signal wires at the back. Notably, it boasts a high-visibility compass for directional orientation and enhanced waterproofing capabilities. Additionally, it is ideal for retrofitting non-smart streetlights to smart ones and for applications requiring an external photocell. The JL-260C meets the insert and twist-lock photocell standards as specified by ANSI C136.10, ANSI C136.41, and ANSI/UL773 for area lighting use

JL-260C External Mounting 7-Pin NEMA Socket Specifications

Model No.	JL-260C
Applicable Volt Range	0~480VAC
Rated Frequency	50/60Hz
Power Loading	15A
Signal Control	0-30 VDC, 250 mA Max
Lead	16AWG(Power)+18AWG(Signal) 20" min
Ambient Temperature	-40°C ~ +70°C
Related Humidity	96%
Certifications	ANSI C136.41-2013
