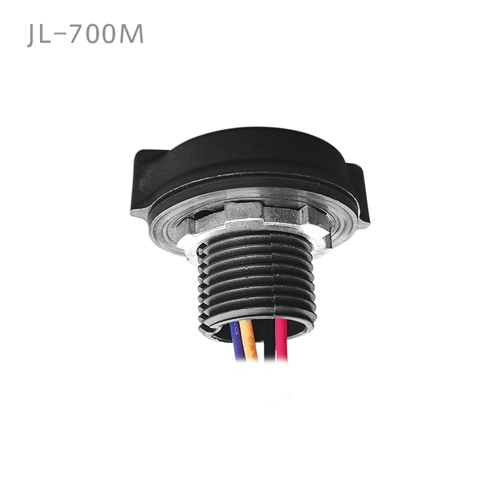

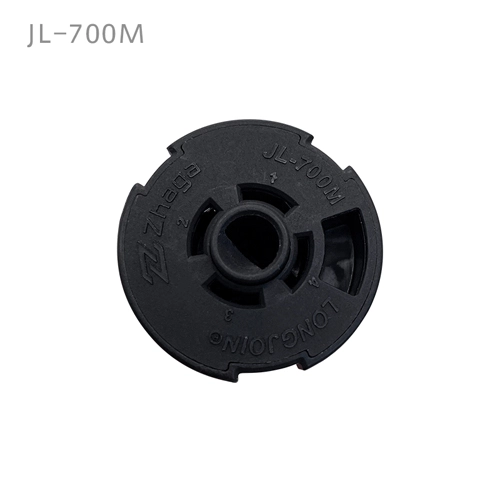

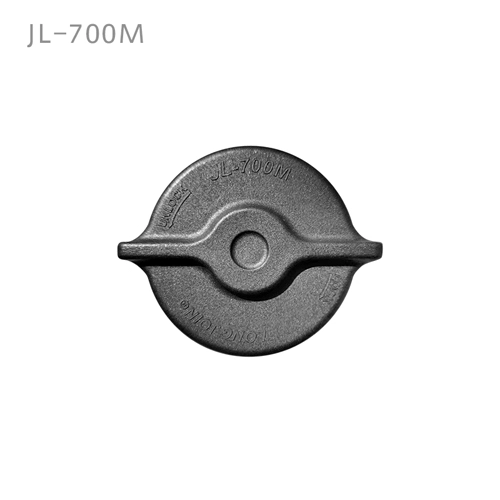

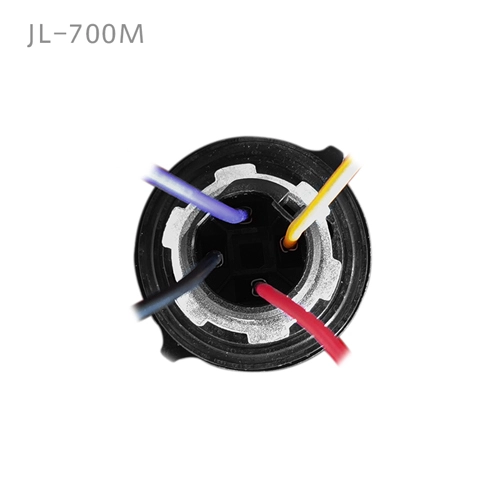

JL-700M US Version

Zhaga Book-18 Receptacle

JL-700M US Version Features:

  • Contact rating: 1.5A, 30VDC (typical 24V)

  • Meet 10kV common mode surge test requirements

  • Hot pluggable

  • Quadrupole contact

  • Rated impulse voltage: 0.8kv

  • Insulation protection: Class II

  • Temperature range: - 40 to 70°C

  • Before installing lamps, the main power supply should be turned off

JL-700M US Version Overview:

Similar to the Zhaga Book-18 standard, the JL-700M zhaga receptacle is designed for a 0-10V dimming scheme, making it ideal for street light controller manufacturers to develop standard equipment for road lighting, regional lighting, or residential lighting. According to the equipment arrangement, these devices can incorporate monitoring, communication, control, and other functions based on 0-10V dimming.

JL-700M US Version Overview:

JL-700M US Version Specifications

Model No.

JL-700M

Related Humidity

96%

Ambient Temperature

-40°C ~ +70 °C

*Wires

AWM 1015, 18/20/22 AWG, 105°C

AWM 1007, 18/20/22 AWG, 80°C

IP

IP66

Certifications


JL-700M US VersionJL-700M US VersionJL-700M US VersionJL-700M US VersionJL-700M US VersionJL-700M US Version

*Conductor specification: # 20 conductor has UL certification

JL-700M US Version Installation

JL-700M US Version Installation

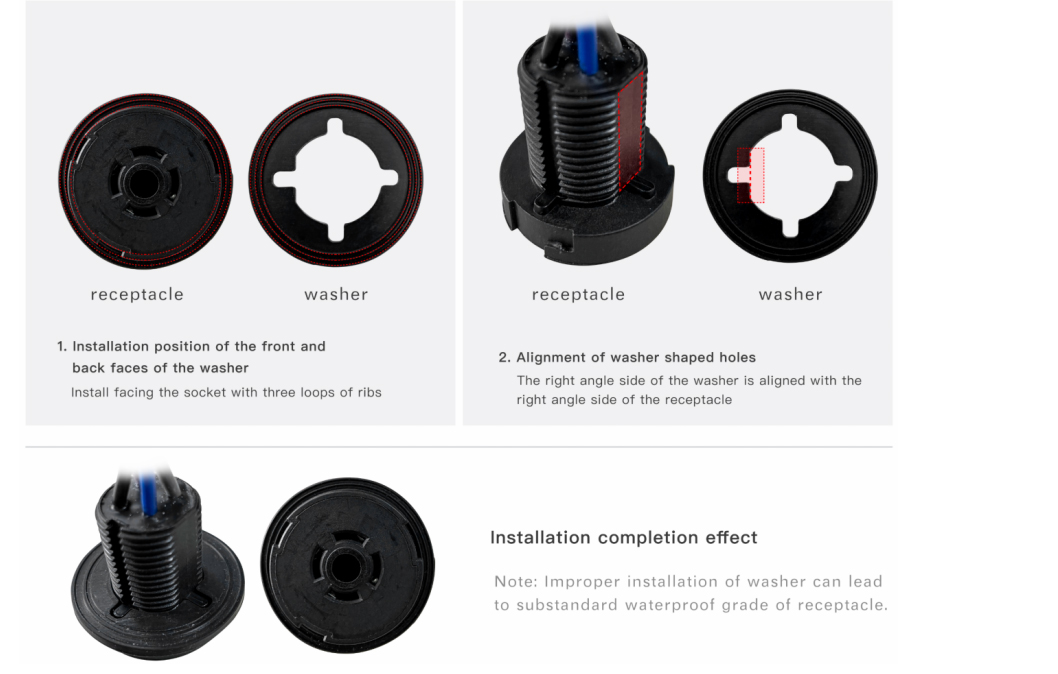

Precautions for installation of gaskets for Zhaga socket products

JL-700M US Version Installation
