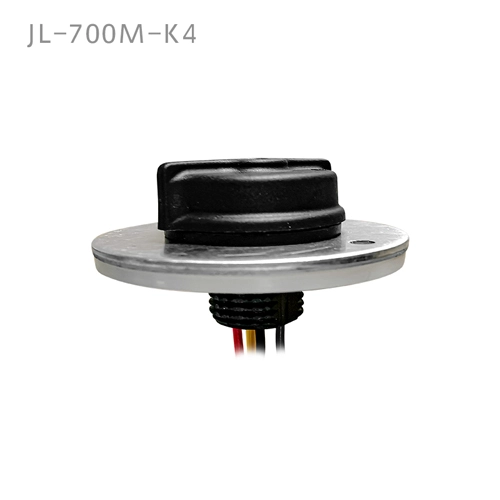

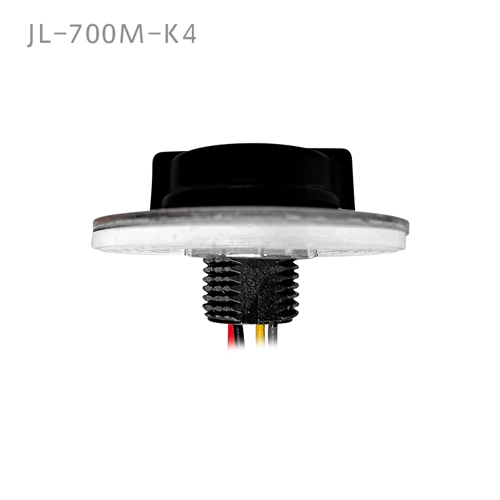

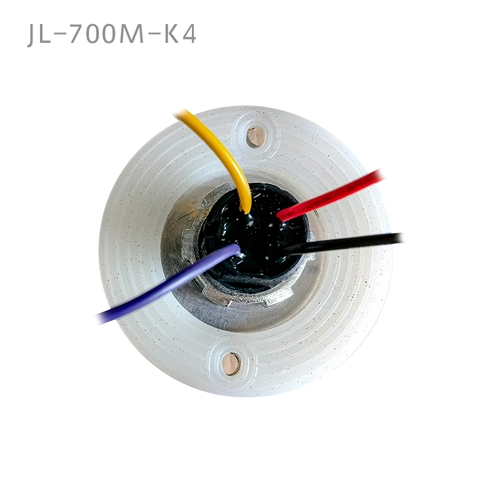

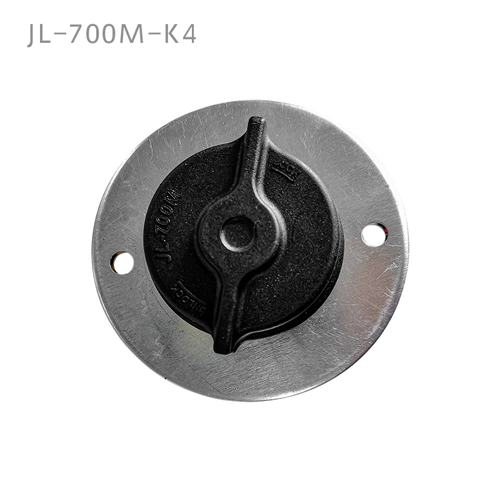

JL-700M-K4 US Version With Retainer Plate

And Washer Zhaga Book-18 Receptacle

JL-700M-K4 US Version With Retainer Plate Features:

  • Contact rating: 1.5A, 30VDC (typical 24V)

  • Meet 10kV common mode surge test requirements

  • Hot pluggable

  • Quadrupole contact

  • Rated impulse voltage: 0.8kv

  • Insulation protection: Class II

  • Temperature range: - 40 to 70°C

  • Before installing lamps, the main power supply should be turned off

JL-700M-K4 US Version With Retainer Plate Overview:

Similar to the Zhaga Book-18 standard, the JL-700M zhaga receptacle is designed for a 0-10V dimming scheme, making it ideal for street light controller manufacturers to develop standard equipment for road lighting, regional lighting, or residential lighting. According to the equipment arrangement, these devices can incorporate monitoring, communication, control, and other functions based on 0-10V dimming.

JL-700M-K4 US Version With Retainer Plate Overview:

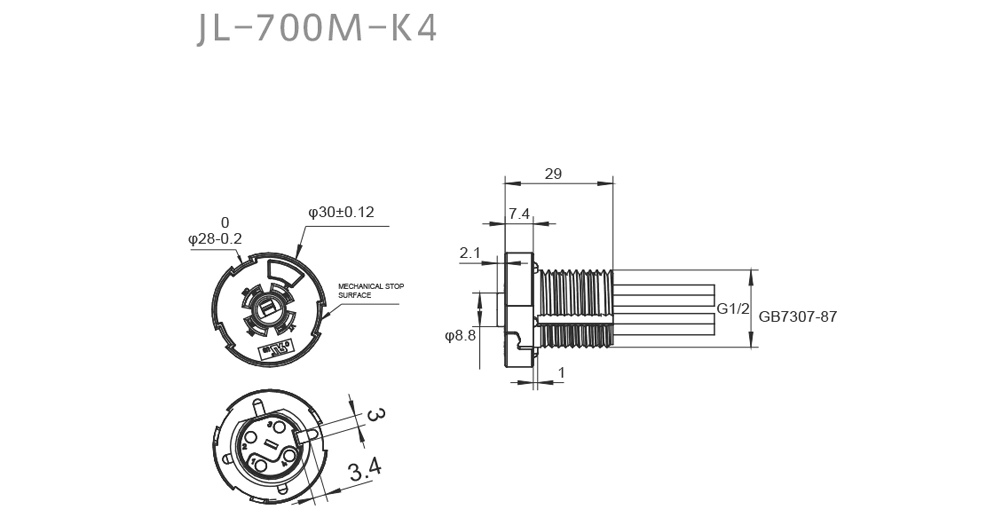

JL-700M-K4 US Version With Retainer Plate Specifications

Model No.

JL-700M-K4

Related Humidity

96%

Ambient Temperature

-40°C ~ +70 °C

*Wires

AWM 1015, 18/20/22 AWG, 105°C

AWM 1007, 18/20/22 AWG, 80°C

IP

IP66

Certifications

JL-700M-K4 US Version With Retainer PlateJL-700M-K4 US Version With Retainer PlateJL-700M-K4 US Version With Retainer PlateJL-700M-K4 US Version With Retainer PlateJL-700M-K4 US Version With Retainer PlateJL-700M-K4 US Version With Retainer Plate

*Conductor specification: # 20 conductor has UL certification

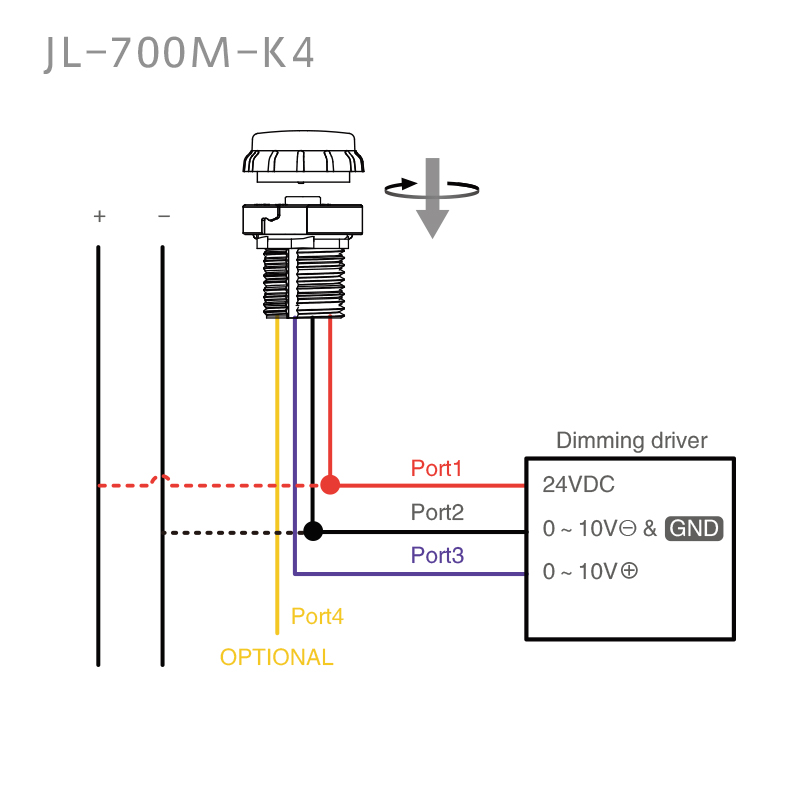

JL-700M-K4 US Version With Retainer Plate Installation

JL-700M-K4 US Version With Retainer Plate Installation

Precautions for installation of gaskets for Zhaga socket products

JL-700M-K4 US Version With Retainer Plate Installation
