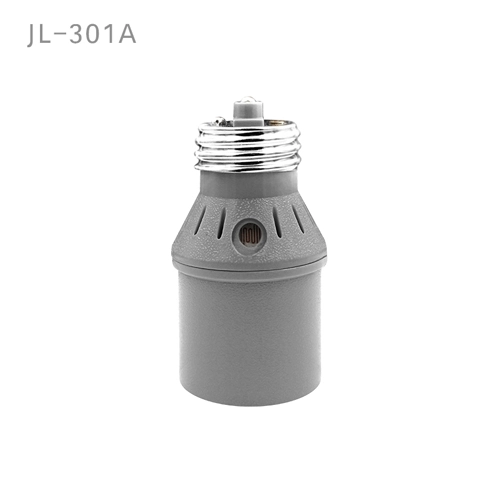

Name: JL-301A E26 Bulb Socket
Brand: Shanghai Long-Join Intelligent Technology Inc.
Availability: InStock

JL-301A E26 Bulb Socket Overview:

The JL-301A series of bulb holder controls is designed for automatically managing garden, corridor, and entrance lighting based on the surrounding natural light conditions. It is advisable to use the JL-301A exclusively with tungsten bulbs.

JL-301A E26 Bulb Socket Specifications

Model No.	JL-301A
Rated Voltage	120VAC
Rated Frequency	60Hz
Rated Loading	150W Tungsten
Power Consumption	0.5W Max.
Typical On/Off Level	20~40 Lx
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Failure Mode	Fail-Off
Adapter	E26
Certifications

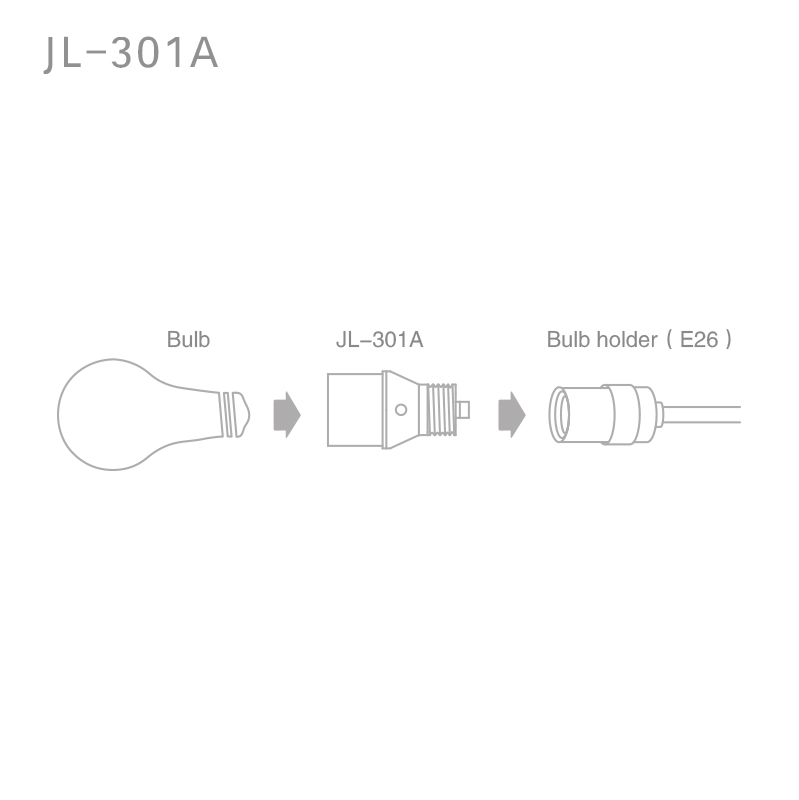

JL-301A E26 Bulb Socket Installation

Disconnect power.
Screw bulb off.
Screw the automatic light socket unit into bulb holder completely.
Screw bulb into the bulb holder of the unit.
Connect power. Turn lamp switch ON.
Do not install the switch with the Photocell facing artificial or reflected light. This will cause the unit to cycle on and off at night.
Avoid to use the unit in an opaque or reflective glass lantern, as well as use in a wet place.

JL-301A E26 Bulb Socket Installation
