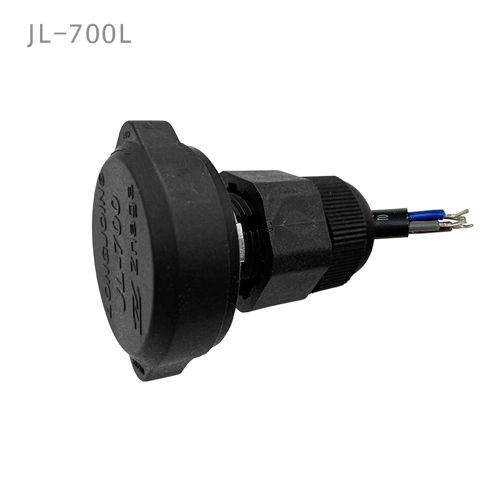

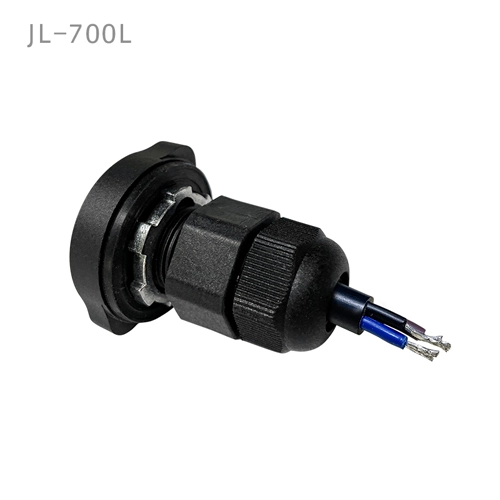

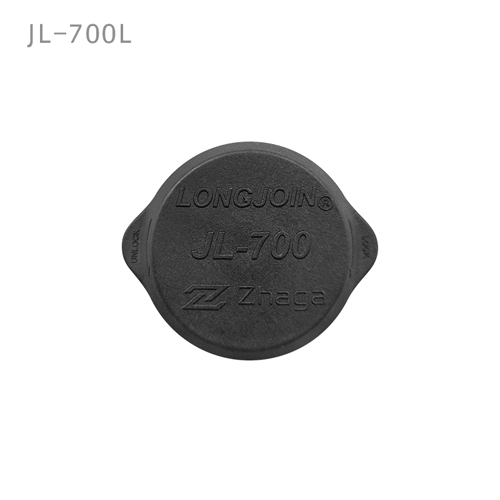

JL-700L Cables Version

Zhaga Book-18 Receptacle, Waterproof

JL-700L Cables Version Features:

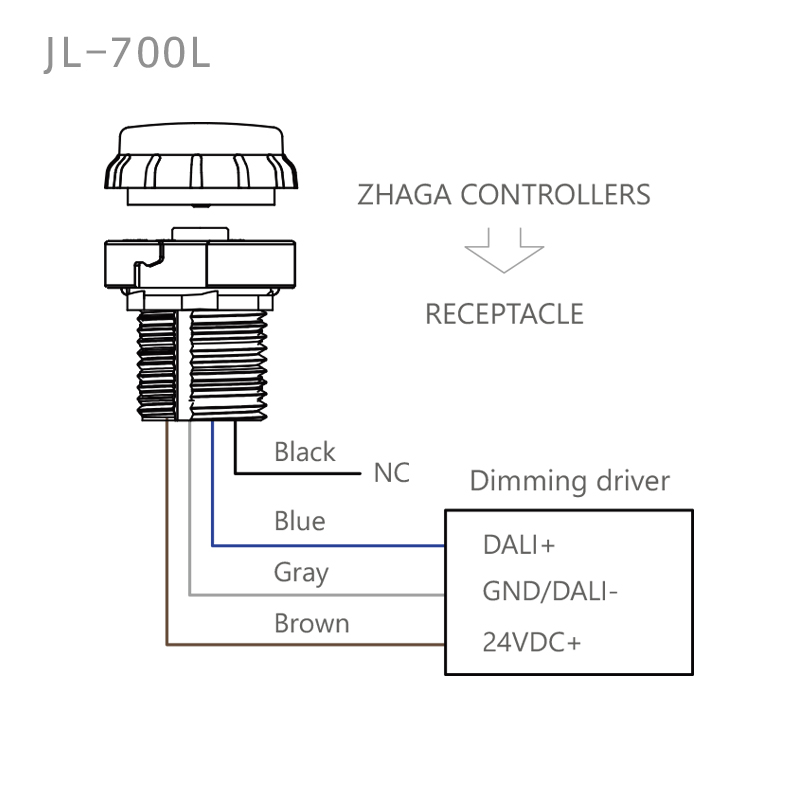

Cable (brown gray blue black)
Standardized interface defined in Zhaga Book-18
Compact size allowing greater flexibility in luminaire design
Advanced sealing to achieve IP66 with no mounting screws
Scalable solution allows use of Ø40mm photocell and Ø80mm LEX-M in a central management system with the same connection interface
Flexible mounting position, upwards, downwards and sideways facing

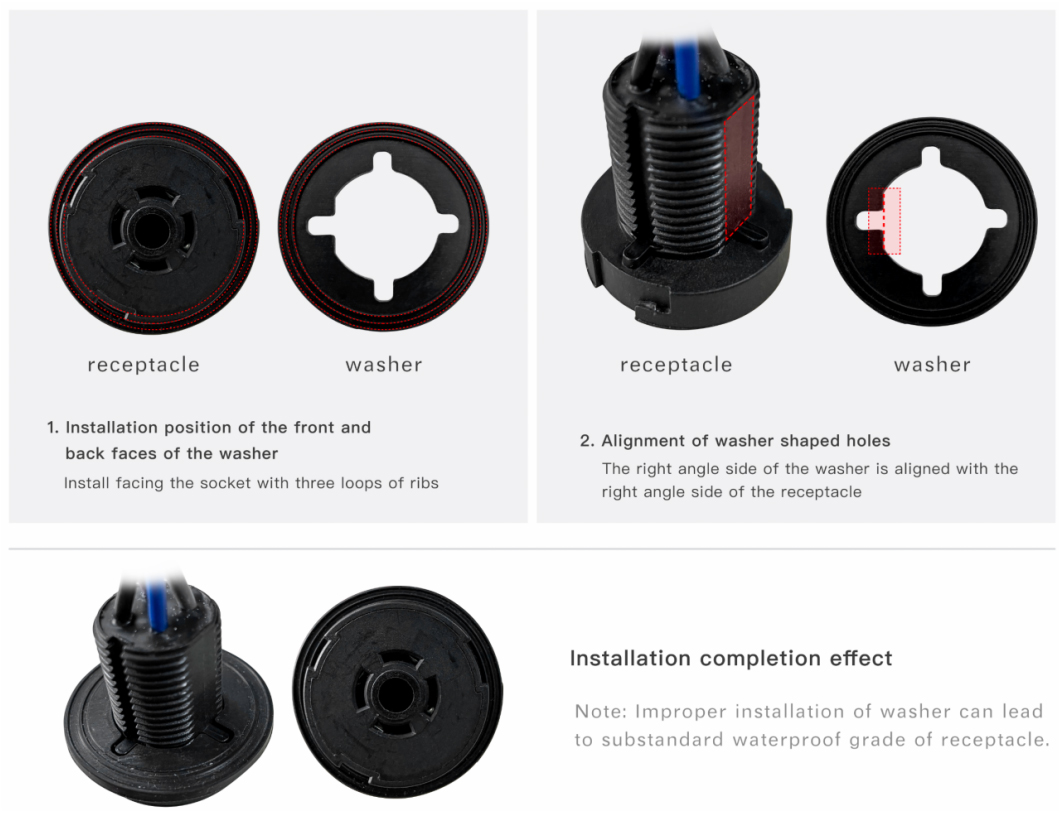

Integrated single gasket that seals to both luminaire and module that minimizes assembling time

JL-700L Cables Version Overview:

The JL-700L zhaga receptacle, a locking socket, meets the requirements of the Zhaga Book-18 standard interface (Z-LEX-R, Z-LEX-C) and has passed relevant certification, facilitating the development and installation of road lighting, regional lighting, or commercial and residential lighting, such as street lights, industrial and mining lights, corridor lights, wall lights, etc.

JL-700L Cables Version Specifications

Model No.	JL-700L
Rated Voltage	24VDC
Power Consumption	1.5A MAX
Related Humidity	96%
Ambient Temperature	-40°C ~ +70 °C
*Wires	AWM 1015, 18/20/22 AWG, 105°C AWM 1007, 18/20/22 AWG, 80°C
IP	IP66
Certifications
