Name: JL-246CR NEMA Interface 0-10V Dimming Built-In Zigbee
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-246CR NEMA Interface 0-10V Dimming Built-In Zigbee Overview:

The JL-246CR photocontrol is designed for use in both individual and system-wide control scenarios, ranging from roadways to trade shows, schools, shopping malls, supermarkets, factories, and parks. It is integrated with a ZigBee communication module in addition to an RS485 communication module, facilitating remote management of its ZigBee group through a smart IoT management system.

JL-246CR NEMA Interface 0-10V Dimming Built-In Zigbee Specifications

Model No.	JL-246CR
Rated Voltage	120~277VAC
Applicable Voltage Range	105~305VAC
Rated Frequency	50/60Hz
Dimming Output	0~10VDC
Wireless Communication（up）	RS485
Wireless Communication（down）	Zigbee
Spectral Acquisition Range	350~1100nm；Peak wavelength 590nm
Rated Loading	1000W Tungsten ; 1000VA Ballast ; 8A@120V 5A@208-277 e-Ballast
Operate Levels	Turn-On＜100Lx，Turn-Off＞150Lx / per client request
Power Consumption	1.2W static，3.4W dynamic
Operating Temperature	-40℃~70℃
Operating Humidity	96%
Failure mode	Fail-On
Shell material	PC+PC
High protection	Double Shell
Surge protection level	6KV/3KA differential mode
IP level	IP65/IP67
Factory Settings	Remote control+Adaptive mode
FCC	●
Certifications
Criterion	IEC61000-4-5;IEC61000-4-2;IEC61000-4-3; IEC61000-4-6;GB/T 17743-2017;IEC61000-4-4; IEC61000-4-11;IEC61000-3-2;GB/T2423.10-2008; UL94-V0;

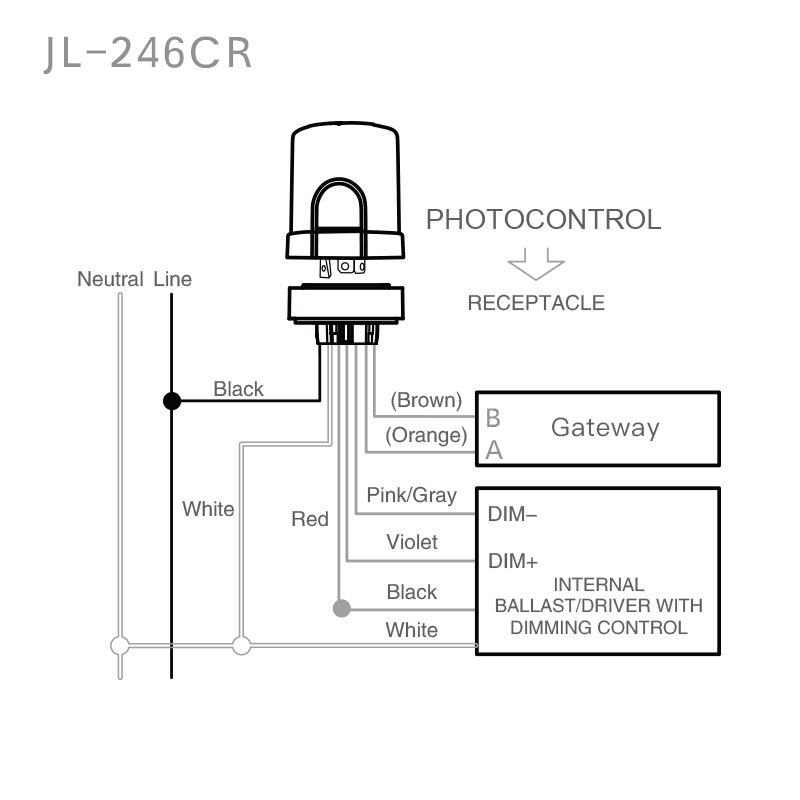

JL-246CR NEMA Interface 0-10V Dimming Built-In Zigbee Installation

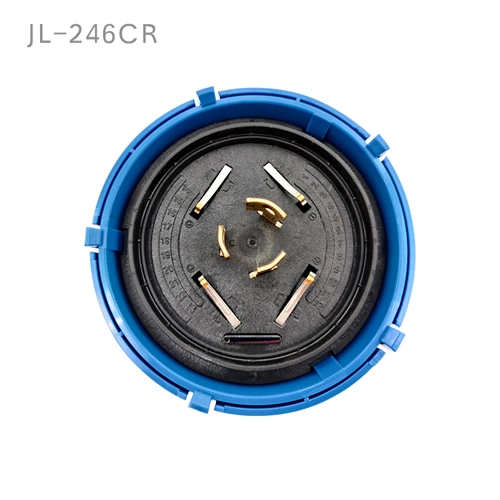

The interface of the product itself has been mistake-proof designed, just tighten the photocontrol directly to the rotatable/fixed base, as shown in Figure clockwise after insertion.
